Migration Guides

FiveM radio frames (local skins to Radio panel)

If auto-updates are enabled, no manual download is needed. On its first start, the updated FiveM resource imports your existing skins artwork and layouts into Customize > Overlay in the Radio panel. No manual upload or layout changes are needed. It archives skins as skins_old only after confirming the import; keep that folder until you have checked your frames in game. If migration fails, local skins remain available and the resource retries. Check the server console and contact support if the warning persists.Permissions: Existing folder names in Config.frames.departments[*].allowedFrames keep working, so no changes are required during the update. For new permissions, copy each frame’s frame:<ID> from the FiveM Radio Frames guide.Free communities can continue using imported frames, but editing them or uploading new artwork in the panel requires Pro. Imported HUD and scanner layouts still work in game; contact support if they need editing.

2.27.22 (Configurable PTT Animation)

Version 2.27.22 adds a new configuration option to customize the push-to-talk animation.

Open your existing config.lua
Add the following table to the configuration file

The values below preserve the existing default animation used while transmitting on foot with the radio closed.

Config.pttAnimation = {
	dictionary = 'random@arrests', -- Animation dictionary used while transmitting with the radio closed
	name = 'generic_radio_chatter' -- Animation name used while transmitting with the radio closed
}

2.26.0 (Display Name Sync)

Version 2.26.0 adds a new configuration option to set user’s radio display names to match their in-game name.

Open your existing config.lua
Add the new properties to the configuration file

If set to true the radio display name will be set to the QBCore, QBox, ESX, or vanilla in-game name.

Config.syncPlayerNameToRadio = false -- Sync the player's in-game character name to their Sonoran Radio display name

2.25.6 (Water Degredation)

Version 2.25.6 adds a new configuration option to degrade signal strength when the user is underwater.

Open your existing config.lua
Add the new properties to the configuration file

Config.heavySignalDegradeInWater = { -- Heavily degrade radio signal while the player is in water to mimic an IP67-rated handheld
	enabled = true, -- Set to true to enable heavy signal degrade in water
	pedInWaterDegredation = 0.6, -- Signal strength multiplier when the player is simply in water (e.g. 0.6 would reduce signal strength to 60% of normal)
	pedUnderWaterDegredation = 0.3 -- Signal strength multiplier when the player is underwater (e.g. 0.3 would reduce signal strength to 30% of normal)
}

2.24.0 (Geo Channels, Auto Notifications, Display Name Function, Auto On-Scene Status AI)

Version 2.24.0 adds a new configuration options to:

Create Geo-based channel switching
Use new notification frameworks
A custom function for guest user display names
Allowing the upcoming AI to automatically change your status when you are en-route and arrive on-scene at a GPS routed location.

Open your existing config.lua
Add the new properties to the configuration file

Geo Channels

-- Geo-Channel Settings --
Config.geoChannels = {
	enabled = true,
	command = 'sonradgeoswitch', -- command to toggle geo-channel switching | e.g. /sonradgeoswitch
	friendlyCommand = 'geoswitch', -- friendly subcommand of the /radio command to toggle geo-channel switching | e.g. / radio geoswitch
	acePermission = '', -- ACE permission required to use disable geo-channel switching | Leave blank to allow all users
	showNotifications = true -- Show notifications when geo-channel switching is enabled/disabled
}

Auto Notifications

-- Change the type from 'native' to the new 'auto' option

-- OLD:
Config.notifications = {
	type = 'native', -- Available options: native, pNotify, okokNotify, ox_lib, chat, or custom
	notificationTitle = 'SonoranRadio', -- Notification Title for methods that support it

-- NEW:
Config.notifications = {
	type = 'auto', -- Available options: auto, native, pNotify, ox_lib, okokNotify, chat, or custom
	notificationTitle = 'SonoranRadio', -- Notification Title for methods that support it

Guest Display Name

-- Customize Radio Guest Display Names
Config.getGuestDisplayName = function(source)
	-- return ('Guest %s'):format(source)
	return nil
end

AI GPS Auto-Status

Config.autoOnSceneStatus = {
	enabled = true, -- Enable automatic ON_SCENE status when arriving at a waypoint created by SonoranRadio AI
	distance = 30.0, -- Distance in meters from the waypoint to trigger ON_SCENE status
	statusEnum = 4, -- Status enum for "ON_SCENE" -- See https://docs.sonoransoftware.com/cad/api-integration/api-endpoints/emergency/identifiers/unit-status for more information
	timeout = 300000 -- Time in milliseconds to timeout the auto ON_SCENE status after arriving at the waypoint
}

Version 2.22.0 adds a new configuration option to use in-game ACE permissions for a guest login, removing the need for a user account.

Open your existing config.lua
Add the new property to the configuration file

Config.acePermsForRadioGuests = false -- Restrict users joining the radio as a guest to an ace permission

Learn more about this new configuration line.

2.21.0 (AI Postal Callouts + Signal Jammers)

Version 2.21.0 adds a new configuration option for AI Pursuit Postal Callouts.

Open your existing config.lua
Add the new properties (withPostal and postalResource) to your Config.autoCallouts object. The end result should look like:

Config.autoCallouts = {
	enabled = true, -- Whether or not this feature is enabled
	speedUnit = 'mph', -- mph | kmh | none -- The unit of speed provided with the callout
	withPostals = false, -- Whether to include postals with the automatic callouts
	postalResource = 'nearest-postal',
}

Version 2.21.0 adds a new configuration option for Signal Jammers.

Open your existing config.lua
At the bottom of the configuration file, copy and paste the entire Config.radioJammers object.

Config.radioJammers = {
	enabled = true, -- Enable or disable radio jammers
	menuCommand = 'jammers', -- Subcommand to open the jammers menu | e.g. /sonoranradio jammers
	toggleRange = 3.0, -- Distance in meters required to toggle a jammer on/off
	permissionMode = 'none', -- ace, qbcore, esx or none
	acePermission = 'sonoranradio.jammers', -- ACE permission required to use jammers
	allowedJobs = { -- Jobs that can use jammers | Requires permission mode to be set to 'qbcore' or 'esx'
		['hacker'] = {
			grades = { -- Job grades that can use jammers
				1,
				2,
				3
			}
		}
	},
	jammers = {
		-- Define jammers here
		-- Example:
		{
			name = 'Hand Held Jammer', -- Name of the jammer
			model = 'm23_2_prop_m32_hackdevice_01a', -- Model name for the jammer
			offModel = 'm23_2_prop_m32_hackdevice_01a', -- Model name for the jammer when off | Optional
			range = 25, -- Range of the jammer in meters
			strength = 0.5, -- Strength of the jammer (0.0 to 1.0)
			permission = 'sonoranradio.jammer_handheld', -- ACE permission required to use this jammer | Optional
			-- If permission is not set, the jammer will be available to all players that can access the jammers menu
			type = 'handheld', -- Type of jammer (handheld or static)
			itemName = 'sonoran_radio_jammer_handheld', -- Item name for the jammer (if Config.enforceRadioItem is true)
			poweredItemName = 'sonoran_radio_jammer_handheld_on' -- Optional item that replaces the base item while the jammer is powered on
		},
		{
			name = 'Suitcase Jammer', -- Name of the jammer
			model = 'ch_prop_ch_mobile_jammer_01x', -- Model name for the jammer
			offModel = 'ch_prop_ch_mobile_jammer_01x', -- Model name for the jammer when off | Optional
			range = 100, -- Range of the jammer in meters
			strength = 0.8, -- Strength of the jammer (0.0 to 1.0)
			permission = '', -- ACE permission required to use this jammer | Optional
			-- If permission is not set, the jammer will be available to all players that can access the jammers menu
			type = 'static', -- Type of jammer (handheld or static)
			itemName = 'sonoran_radio_jammer_suitcase' -- Item name for the jammer (if Config.enforceRadioItem is true)
		},
		{
			name = 'Case Jammer', -- Name of the jammer
			model = 'h4_prop_h4_jammer_01a', -- Model name for the jammer
			offModel = 'h4_prop_h4_jammer_01a', -- Model name for the jammer when off | Optional
			range = 200, -- Range of the jammer in meters
			strength = 1.0, -- Strength of the jammer (0.0 to 1.0)
			permission = '', -- ACE permission required to use this jammer | Optional
			-- If permission is not set, the jammer will be available to all players that can
			type = 'static', -- Type of jammer (handheld or static)
			itemName = 'sonoran_radio_jammer_case' -- Item name for the jammer (if Config.enforceRadioItem is true)
		},
		{
			name = 'Satelite Jammer', -- Name of the jammer
			model = 'm23_2_prop_m32_jammer_01a', -- Model name for the jammer
			offModel = 'm23_2_prop_m32_jammer_01a', -- Model name for the jammer when off | Optional
			range = 300, -- Range of the jammer in meters
			strength = 1.0, -- Strength of the jammer (0.0 to 1.0)
			permission = '', -- ACE permission required to use this jammer | Optional
			-- If permission is not set, the jammer will be available to all players that can
			type = 'static', -- Type of jammer (handheld or static)
			itemName = 'sonoran_radio_jammer_satelite' -- Item name for the jammer (if Config.enforceRadioItem is true)
		}
	}
}

2.20.0 (Default ESC Behavior)

Version 2.20.0 adds a new feature to configure your community’s default ESC behavior setting.

Open your existing config.lua

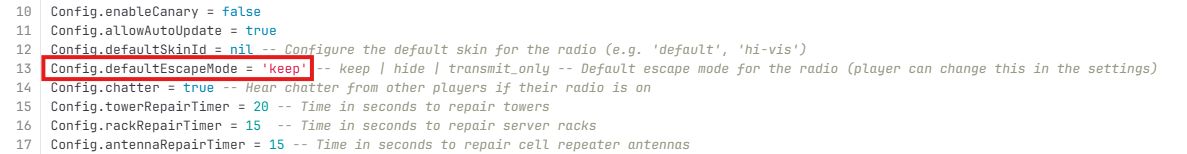

Add the new Config.defaultEscapeMode = 'keep' property. You can enable and configure this feature if desired.

2.19.0 (PTT on Panic & AI Callouts)

Version 2.19.0 adds a new feature to automatically press a user’s push-to-talk button on panic.

Open your existing config.lua
Add the three new config options:

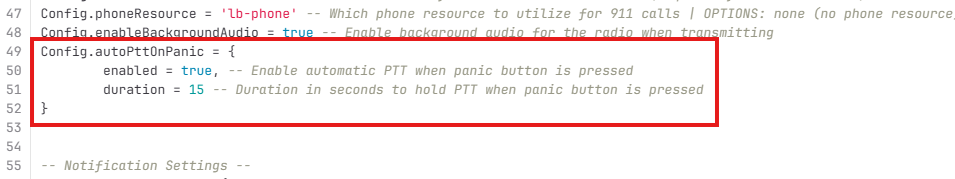

A. autoPttOnPanic Config

Config.autoPttOnPanic = {
	enabled = true, -- Enable automatic PTT when panic button is pressed
	duration = 15 -- Duration in seconds to hold PTT when panic button is pressed
}

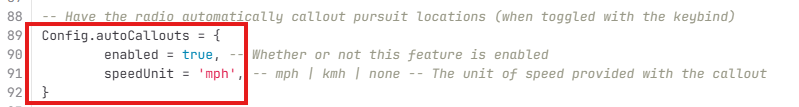

B. autoCallouts Config

-- Have the radio automatically callout pursuit locations (when toggled with the keybind)
Config.autoCallouts = {
	enabled = true, -- Whether or not this feature is enabled
	speedUnit = 'mph', -- mph | kmh | none -- The unit of speed provided with the callout
}

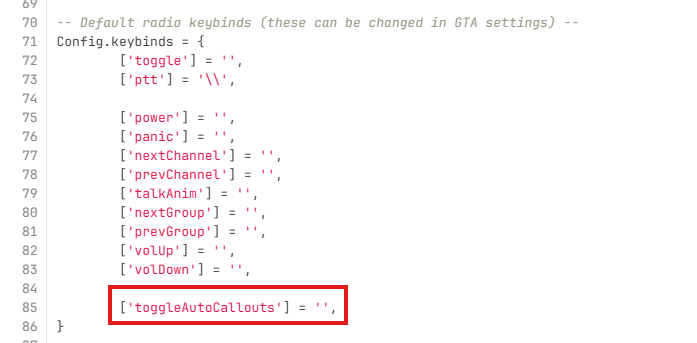

C. toggleAutoCallouts KeybindInside of the existing Config.keybinds add a new line for:
`['toggleAutoCallouts'] = '',

2.18.0 (LB Phone, Background Noise)

Version 2.18.0 adds a new integration for LB phone and feature to inject background noise into your transmissions.

Open your existing config.lua

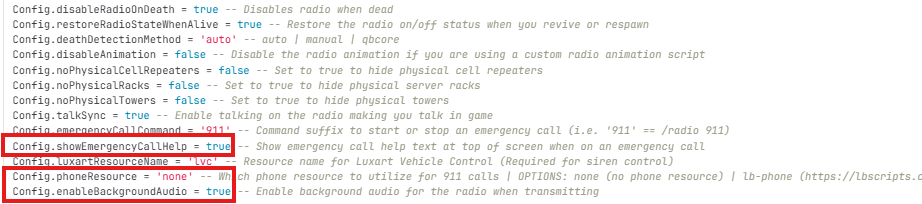

Add the new Config.showEmergencyCallHelp = true option. Setting this to false hides the emergency call banner.
Add the new Config.phoneResource = 'none' option. Setting this to 'lb-phone' enables the LB phone integration.
Add the new Config.enableBackgroundAudio = true option. Setting this to false disables the background audio injection feature.

2.15.0 (ACE Perm Sync)

Version 2.15.0 adds a new feature to manage radio community approval and permissions via ACE perms.

Open your existing config.lua

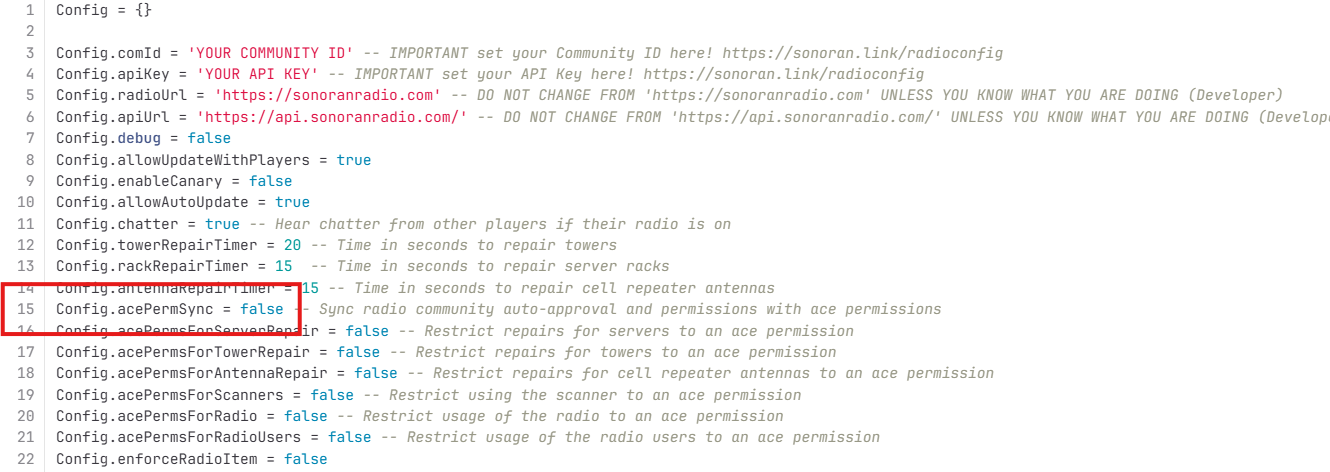

Add the new Config.acePermSync = false property. You can enable and configure this feature if desired.

2.14.0 Release (LVC Resource Name)

Version 2.14.0 adds a new feature to increase radio volume when in-game sirens are on.

Open your existing config.lua

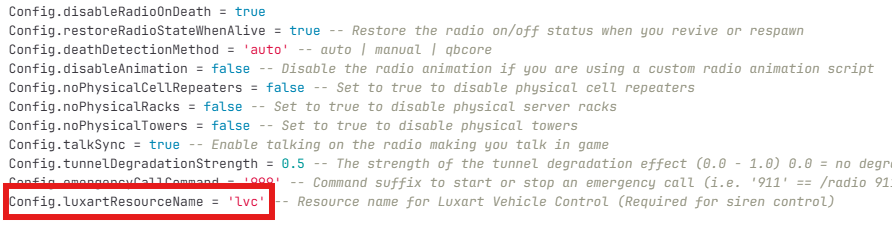

Add the new Config.luxartResourceName = 'lvc' property.

2.11.0 Release (Earpieces JSON)

Version 2.11.0 Migrates the earpiece configuration from the config.luato earpieces.json. Therefore, this property is no longer needed in your config.lua file.

Open the new earpieces.json file to confirm your configuration has been migrated (after resource start).
Open your existing config.lua
Remove the Config.chatterExclusions property.

2.10.0 Release (Config Values)

Version 2.10.0 introduces new configuration values to customize the default user keybinds and the emergency call prefix.Note: This new default key mapping will only apply to new users who have not joined the server and had their keybind set yet.

Open your existing config.lua
Paste in the two, new default config options:

Config.emergencyCallCommand = '999' -- Command suffix to start or stop an emergency call (i.e. '911' == /radio 911)

-- Default radio keybinds (these can be changed in GTA settings) --
Config.keybinds = {
	['toggle'] = '',
	['ptt'] = '\\',
	['power'] = '',
	['panic'] = '',
	['nextChannel'] = '',
	['prevChannel'] = '',
	['talkAnim'] = ''
}

This is is also available from the auto-updater’s config.CHANGEME.lua

2.8.1 Release (Mobile Repeater Default Key)

This section applies only to older 2.8.1-era resource versions. Current versions no longer register Config.mobileRepeaterKeybind. Players use /radio repeater, and administrators manage compatible vehicle models through Radio Repeaters > Mobile Repeater Vehicles in /radiomenu.

Version 2.8.1 introduces a new configuration value to customize the default user keybind to toggle mobile repeaters.Note: This new default key mapping will only apply to new users who have not joined the server and had their keybind set yet.

Open your existing config.lua
Paste in the new default config option (Config.mobileRepeaterKeybind)
This is also available from the auto-updater’s config.CHANGEME.lua

-- Mobile repeater keybinds
Config.mobileRepeaterKeybind = {
	mapperType = 'keyboard', -- See: https://docs.fivem.net/docs/game-references/input-mapper-parameter-ids/
	map = 'g', -- See: https://docs.fivem.net/docs/game-references/input-mapper-parameter-ids/
	label = 'Toggle Radio Repeater'
}

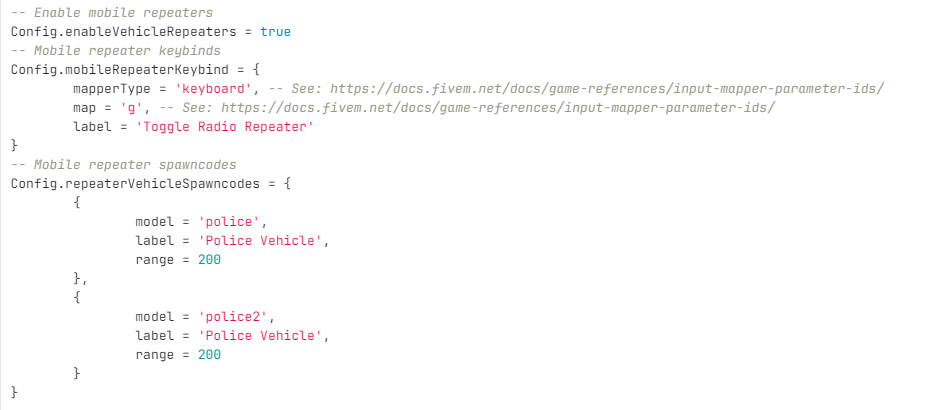

Your config.lua show now look like the following:

2.7.0 (Speakers, Tunnels, Voice Effects, and Earpiece EUP)

Version 2.7.0 introduces a new configuration value for EUP earpiece detection (to prevent people from hearing nearby chatter).

Open your existing config.lua
Paste in the new default config option:
This is also available from the auto-updater’s config.CHANGEME.lua

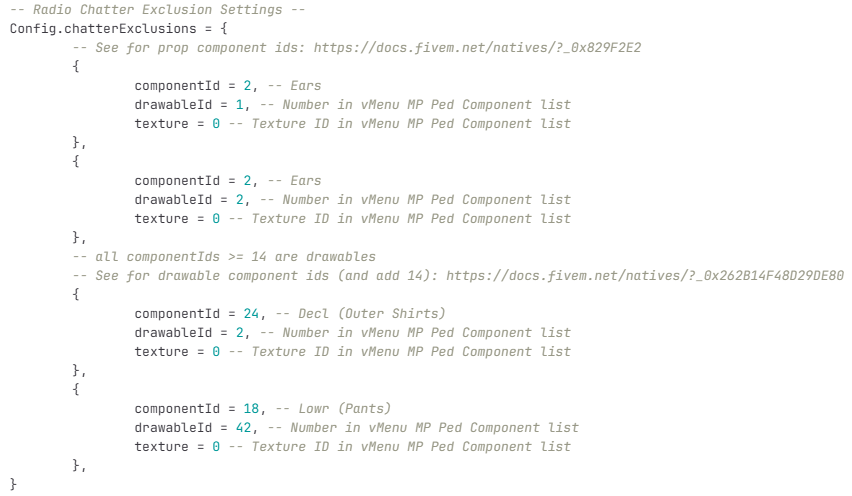

-- Radio Chatter Exclusion Settings --
Config.chatterExclusions = {
	{
		componentId = 2, -- Ears
		drawableId = 1, -- Number in vMenu MP Ped Component list
		texture = 0 -- Texture ID in vMenu MP Ped Component list
	},
	{
		componentId = 2, -- Ears
		drawableId = 2, -- Number in vMenu MP Ped Component list
		texture = 0 -- Texture ID in vMenu MP Ped Component list
	},
	{
		componentId = 2, -- Ears
		drawableId = 2, -- Number in vMenu MP Ped Component list
		texture = 0 -- Texture ID in vMenu MP Ped Component list
	},
	{
		componentId = 2, -- Ears
		drawableId = 42, -- Number in vMenu MP Ped Component list
		texture = 0 -- Texture ID in vMenu MP Ped Component list
	},
}

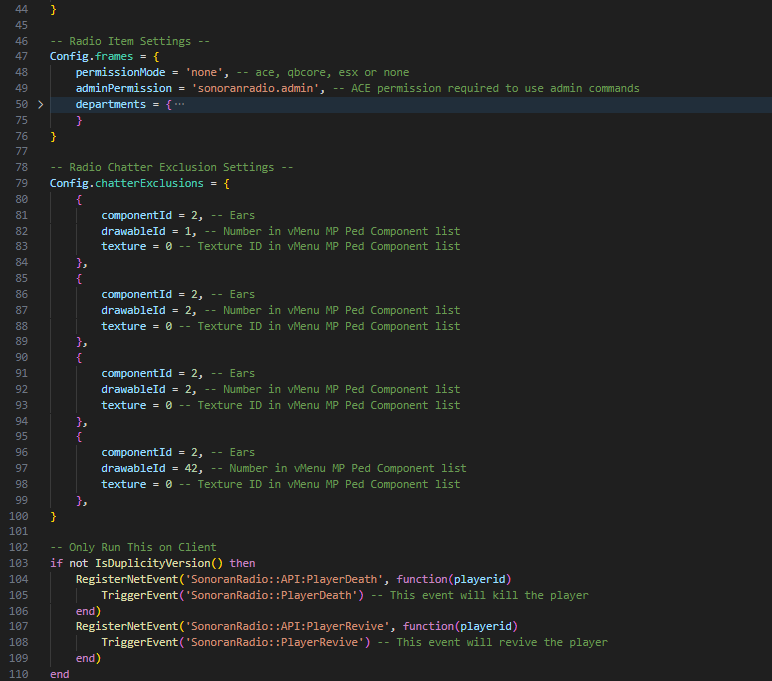

Your config.lua should now appear like the following after adding in the Config.chatterExclusions property:

2.6.0 Release (In-Game Nearby Audio & Connected Users List)

Version 2.6.0 introduces new configuration values.

Open your existing config.lua
Ensure the following lines are set:
1. Config.chatter = true
2. Config.acePermsForRadioUsers = false
3. Config.talkSync = true

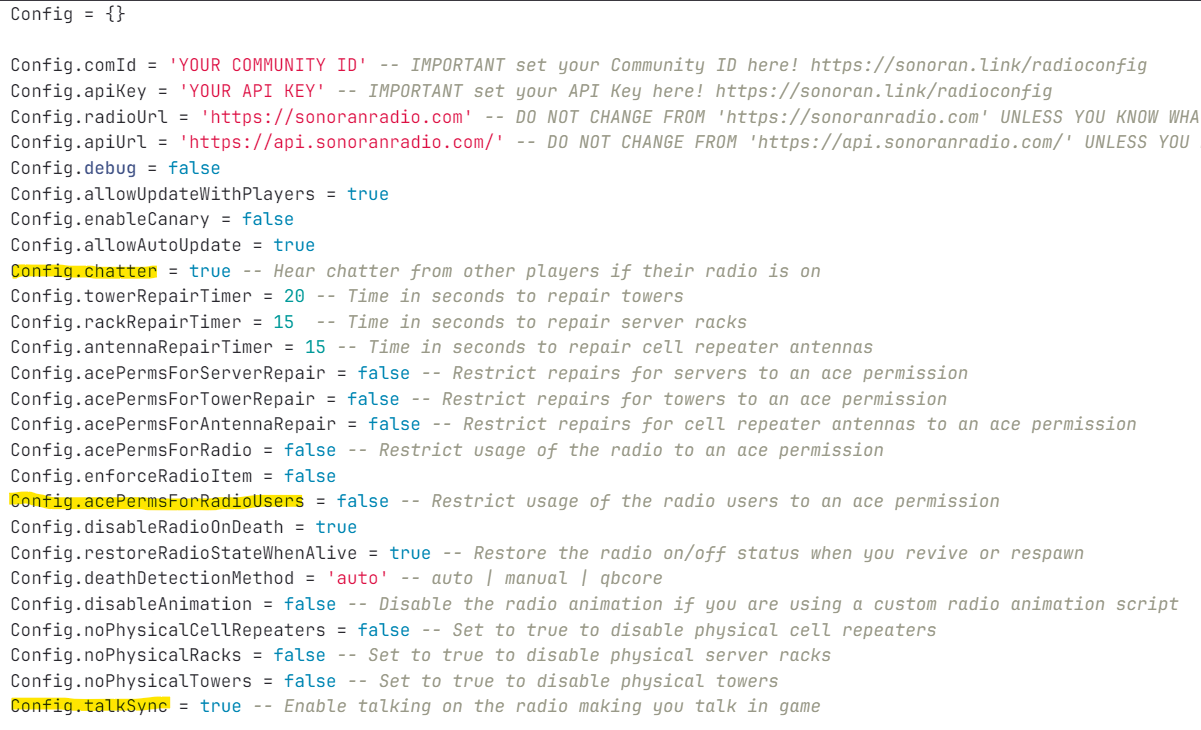

Your config.lua should now look like the following:

2.3.0-1 Release (In-Game Configuration Menu)

Configuration File

Version 2.3.0 introduces a new configuration value.

Open your existing config.lua
Ensure the following lines are set:
1. Config.radioUrl = 'https://sonoranradio.com'
2. Config.apiUrl = 'https://api.sonoranradio.com/'

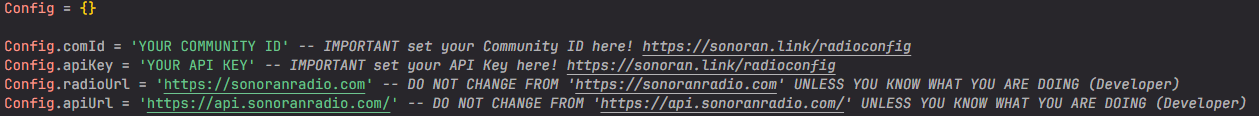

Your config.lua file should now look like the following:

ACE Permissions

Version 2.3.0 introduces a new in-game repeater configuration menu. This allows an easier way to add, edit, or remove in-game repeaters.Communities will need to grant the new command.radiomenu permission.Communities can remove the old spawn and remove command permissions:

command.spawnradiotower
command.spawnradiorack
command.spawnradiocellrepeater
command.removeradiorepeater

See a complete example of our updated ACE permission structure.

2.2.0 Release (In-Game Towers)

Towers File

Version 2.2.0 introduces multiple new in-game tower options. This includes a new towers.DEFAULT.json file that is required.

Delete the existing towers.json file in your sonoranradio resource.
Rename the new towers.DEFAULT.json file to towers.json in your sonoranradio resource and save.

Configuration File

Version 2.2.0 adds a new API key configuration for upcoming features.

Add the following to line to your config.lua file, below the Config.comId line:

Config.apiKey = 'YOUR API KEY'

Replace YOUR API KEY with the community API key from the Administration panel.

Start here

Tutorials

Game Integrations

Pricing

Roadmap & Changelog

Developer Documentation

Configuration File

ACE Permissions

Towers File

Configuration File
