Community ID and API Keys

This guide covers finding your community ID, API keys and IDs, as well as finding your ownership authentication code.

Explanation: API Keys and IDs

Within Sonoran CAD, there are two different types of API Keys that you will need to use, each serving a different purpose.

API integration is not enabled with the free version of Sonoran CAD. For more information, see our pricing or view how to check your community limits.

Community API Key

First, there is your community API Key which allows CAD's in-game integrations to send data to the correct community.

To find your community API Key, see Retrieving Your Credentials below.

This key will be placed in your config.json (for FiveM integration) or the Server Settings panel (for ER:LC integration).

User API ID

In addition to the community API Key, each user will also have their own API ID, which allows CAD to associate the user's in-game player with their Sonoran account. Generally, this will either be the user's Steam Hex, Discord ID, or Game License Key.

This API ID can be found in game by doing /apiid in game, if you have the apicheck plugin installed.

Every user will need to find their own API ID and add it to CAD as shown here.

Retrieving Your Credentials

Your community ID allows users to manually join your community.

Your community ID and API Key can be found in the Admin panel, under Advanced > In-Game Integration. Under the Web API section, your Community ID and API key will be listed as shown:

Sonoran CAD - Web API Information

Click either box to copy its corresponding value to your clipboard.

Other Ways of Finding your Community ID

Your community ID is also listed in the following places:

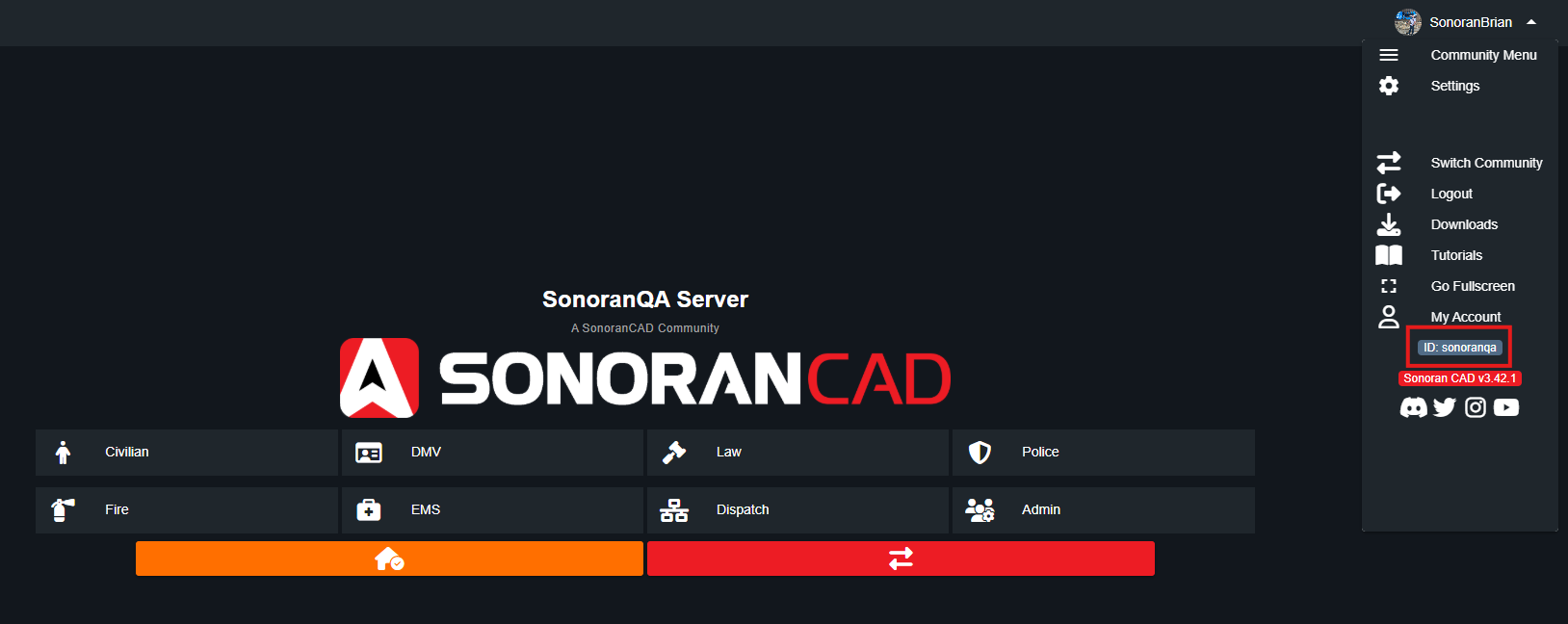

1. In the side navigation bar while logged in

Community IDs are displayed in the side navigation bar

2. In the Admin panel under Advanced > Limits

Community IDs are also displayed in the admin limits section

Authenticating your Ownership

While requesting support from an official Sonoran team member, you may be asked to authenticate your community's ownership.

Your community's ownership authentication code can only be retrieved from your CAD owner. This code is used in support tickets to confirm that you are the registered owner of the community. NEVER give this code out to anyone that is not a member of the Sonoran support team!

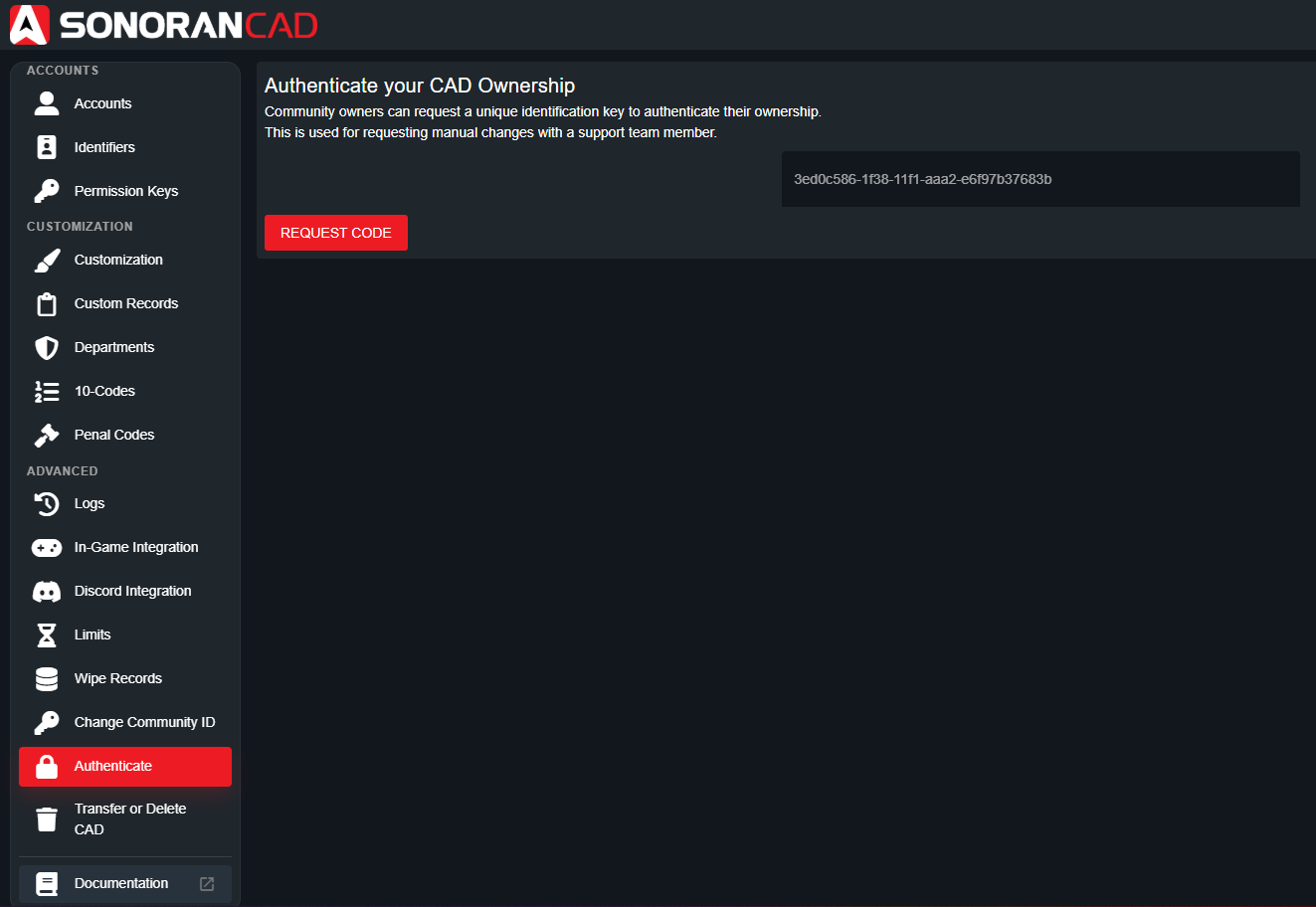

1. In the admin page, navigate to Advanced > Authenticate

2. Press the "Request Code" button

3. Your ownership authentication code will be displayed on the screen
