The Sonoran CAD ERS integration allows dispatchers to generate callouts from the live map, lookup character information, and more!
This submodule utilizes API endpoints that require the Pro version of Sonoran CAD or higher. For more information, view our pricing page.
Looking for VPS, web, or dedicated hosting? Check out our official server hosting!
Sonoran CAD x ERS
What is Emergency Response Simulator?
Emergency Response Simulator is a paid, third-party script for FiveM.
This advanced (co-op) PVE roleplay game mode simulates emergency service calls, where you as emergency service worker have to respond to. Whether you are a medic, firefighter, tow service operator or police officer, there is always something to do. With finetuned callouts you’ll never get bored of driving around in your service vehicle. Rush to high-priority, dangerous calls, or handle routine tasks like warning a speeder. Each callout is unique, with random outcomes that keep you curious and engaged every time you respond to an emergency.
The ERS submodule comes with three record templates (character, license and vehicle registration).
Importing and using these record templates will ensure ERS callout character, license, and vehicle registration records are automatically generated.
These records can be located in the /sonorancad/submodules/ersintegration/SonoranCAD Records directory.
ERS Integration - SonoranCAD Custom Records
The Civilian and Vehicle Registration are default records. If you've modified them, it's recommended to replace them with the provided versions to ensure proper data import.

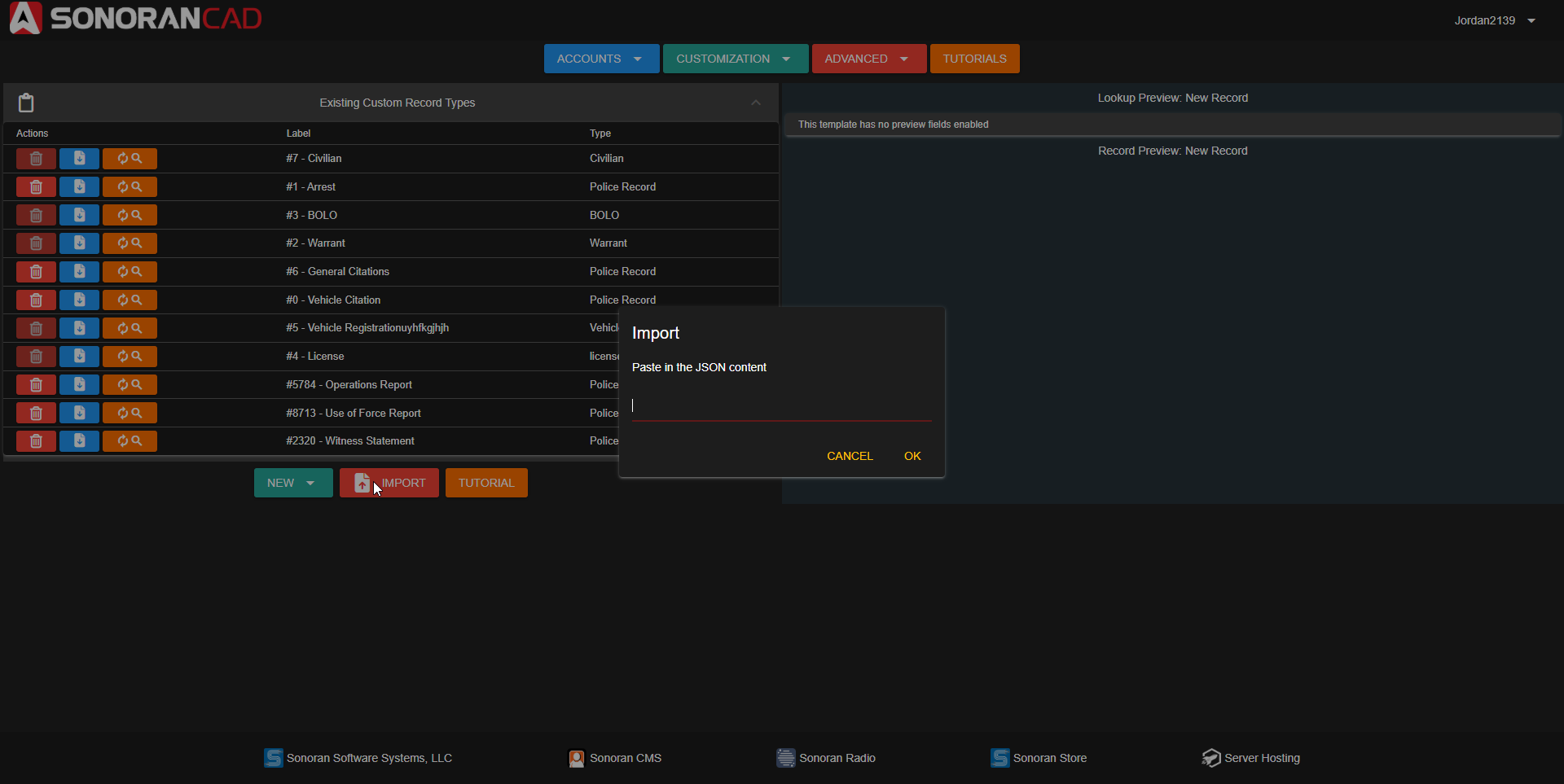

To import in Sonoran CAD, navigate to Admin -> Customization -> Custom Records -> Import.
Open each JSON file and copy/paste the contents into the CAD.
SonoranCAD - Import Record
Configuration
ERS Integration is highly configurable to allow for custom records and calls. All default configuration will work with the provided CAD records seamlessly. It is only recommended to edit if you are experienced with custom records.
Default Configuration
ersintegration_config.lua
Configuration Values
Default Configuration Values
Value
Type
Description
DOBFormat
string
Language code for the DOB format. Available options can be found in the configuration file
clearRecordsAfter
integer
Number of minutes to clear records after | 0 to never delete
create911Call
bool
Create a 911 call when an ERS callout is created
createEmergencyCall
bool
Create an emergency call when an ERS callout is accepted
callPriority
integer
Priority of the call created in CAD (1-3)
callCodes
array
Call codes for each ERS callout type. | Left side is the callout ID and right side is the corresponding 10 code
autoAddCall
bool
Automatically add members to the call when an ERS callout is accepted
customRecords
array
Array of record customization for CAD records. Please see comments in file for more information on record customization
Features
Live Map Callout Generation

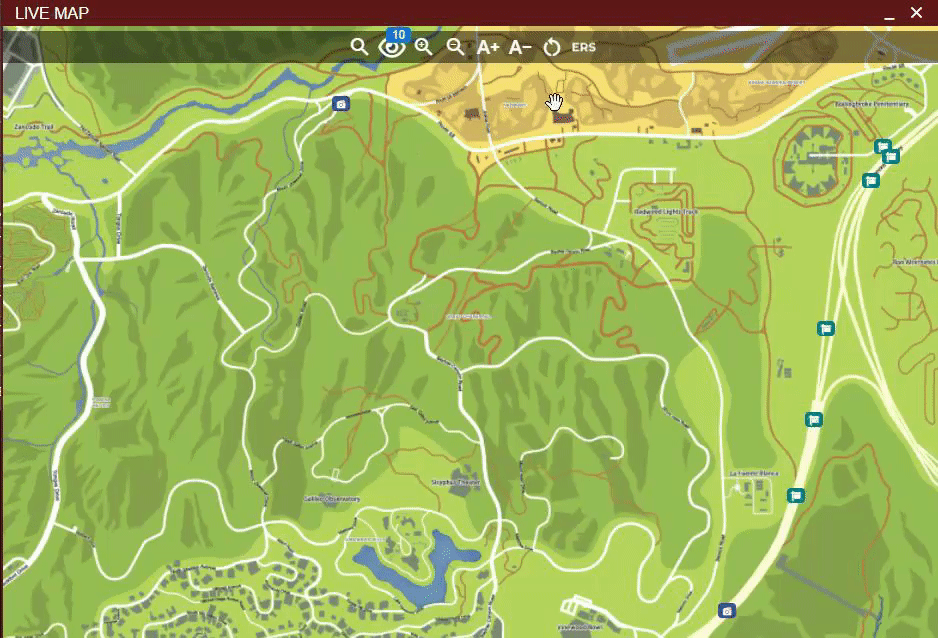

Dispatchers can use the live map to create a new ERS callout at a specific location.
Drag-and-drop the ERS icon from the toolbar to a location on the map. Clicking the new ERS map icon will allow you customize the callout and settings.
Sonoran CAD: ERS Callout Creation
Record Lookups
When a callout is first interacted with, character, license, and vehicle records will be generated in the CAD with the information.
This allows lookups in the CAD to be ran.
Automatic Call Generation
When a callout is generated in-game, a 911 call will be automatically created in the CAD.
911 calls generated from a callout will display with location on the live map.
When a callout is accepted by a unit:
A dispatch call is automatically generated.
The unit is automatically attached to the CAD dispatch call.
Limitations
Database Sync
Database Sync uses the database on your FiveM server, whereas ERS uses the CAD database to create records in the CAD. Thus, when you run a lookup with with DB sync enabled, CAD will query your server's database instead of the CAD database.
For this reason, the ERS integration and DB sync are incompatible. Please only enable one system at a time.
--[[
Sonoran Plugins
Plugin Configuration
Put all needed configuration in this file.
]]
local config = {
enabled = false,
pluginName = "ersintegration", -- name your plugin here
pluginAuthor = "SonoranCAD", -- author
configVersion = "1.2",
-- put your configuration options below
DOBFormat = "en", -- Make sure this matches | en: dd/mm/yyyy | us: mm/dd/yyyy | iso: yyyy/mm/dd
clearRecordsAfter = 30, -- Clear records after this many minutes (0 = never)
create911Call = true, -- Create a 911 call when an ERS callout is created
createEmergencyCall = true, -- Create an emergency call when an ERS callout is accepted
callPriority = 2, -- Priority of the call created in CAD (1-3) | Only used if createEmergencyCall is true
callCodes = {
['Stolen_motorbike'] = '10-22'
}, -- Call codes for each ERS callout type | Only used if createEmergencyCall is true
autoAddCall = true, -- Automatically add members to the call when an ERS callout is accepted
customRecords = {
civilianRecordID = 7, -- Record ID for civilian records
civilianValues = {
-- Configurable mapping for SonoranCAD replaceValues.
-- The key is what SonoranCAD expects and the value is either:
-- • A string that matches a key in pedData, or
-- • A function that returns a value based on pedData.
-- • Left side of mapping is the SonoranCAD field mapping ID from Custom Records, right side is the ERS field.
["first"] = "FirstName",
["last"] = "LastName",
["dob"] = "DOB",
["age"] = function(pedData)
return returnAgeFromDobString(pedData.DOB)
end,
["sex"] = "Gender",
["residence"] = "Address",
["zip"] = "PostalCode",
["phone"] = "Phone",
["skin"] = "Nationality",
["img"] = "ProfilePicture"
-- Add more keys as needed:
-- email = "Email" -- Example: if pedData.Email exists.
},
vehicleRegistrationRecordID = 5, -- Record ID for vehicle registration records
vehicleRegistrationValues = {
-- Configurable mapping for SonoranCAD replaceValues.
-- The key is what SonoranCAD expects and the value is either:
-- • A string that matches a key in pedData, or
-- • A function that returns a value based on pedData.
-- • Left side of mapping is the SonoranCAD field mapping ID from Custom Records, right side is the ERS field.
-- Registration Information
["status"] = function(vehicleData)
if vehicleData.stolen then
return "STOLEN"
elseif not vehicleData.mot then
return "EXPIRED"
else
return "VALID"
end
end,
["_wsakvwigt"] = function(vehicleData)
if vehicleData.stolen then
return "STOLEN"
elseif not vehicleData.mot then
return "EXPIRED"
else
return "VALID"
end
end,
["_imtoih149"] = function(vehicleData)
return os.date("%m/%d/%Y", os.time() + (60 * 60 * 24 * 365)) -- +1 year from now
end,
-- Civilian Information
["first"] = function(vehicleData)
return vehicleData.owner_name:match("^(%S+)")
end,
["last"] = function(vehicleData)
return vehicleData.owner_name:match("%s(.+)$")
end,
-- Vehicle Information
["plate"] = "license_plate",
["model"] = "model",
["color"] = function(vehicleData)
if vehicleData.color_secondary and vehicleData.color_secondary ~= "" then
return vehicleData.color .. ", " .. vehicleData.color_secondary
else
return vehicleData.color
end
end,
["year"] = "build_year",
["type"] = function(vehicleData)
local classMap = {
[0] = "SEDAN", [1] = "SEDAN", [2] = "SUV", [3] = "SUV",
[4] = "COUPE", [5] = "COUPE", [6] = "OFFROAD", [7] = "TRUCK",
[8] = "MOTORCYCLE", [9] = "MARINE", [16] = "AIRCRAFT"
}
return classMap[vehicleData.vehicle_class] or "SEDAN"
end,
-- Add more keys as needed:
-- owner = "Owner" -- Example: if pedData.Owner exists.
},
licenseRecordId = 4, -- Record ID for license records
licenseTypeField = "7eddab31daf4a0182", -- Field ID for license type
licenseTypeConfigs = {
DRIVER = {
type = "DRIVER",
is_valid = "License_Car_Is_Valid",
license = "License_Car",
},
MOTORCYCLE = {
type = "MOTORCYCLE",
is_valid = "License_Bike_Is_Valid",
license = "License_Bike",
},
BOAT = {
type = "BOAT",
is_valid = "License_Boat_Is_Valid",
license = "License_Boat",
},
PILOT = {
type = "PILOT",
is_valid = "License_Pilot_Is_Valid",
license = "License_Pilot",
},
CDL = {
type = "CDL",
is_valid = "License_Truck_Is_Valid",
license = "License_Truck",
},
},
licenseRecordValues = {
-- License Information
["252c4250da9421cbd"] = function(pedData, ctx)
return pedData[ctx.is_valid] and "VALID" or "SUSPENDED"
end,
["878766af4964853a7"] = function(pedData, ctx)
return pedData[ctx.is_valid] and "VALID" or "EXPIRED"
end,
["_54iz1scv7"] = function(pedData, ctx)
if pedData[ctx.license] == "Expired" then
return os.date("%m/%d/%Y", os.time() - (60 * 60 * 24 * math.random(1, 365))) -- Within the last year
end
return os.date("%m/%d/%Y", os.time() + (60 * 60 * 24 * math.random(1, 365))) -- Within a year
end,
-- Civilian Information
["first"] = "FirstName",
["last"] = "LastName",
["mi"] = "", -- No M.I. mapped
["dob"] = "DOB",
["age"] = function(pedData)
return returnAgeFromDobString(pedData.DOB)
end,
["sex"] = "Gender",
["residence"] = "Address",
["zip"] = "PostalCode",
},
boloRecordID = 3, -- Record ID for BOLO records
boloRecordValues = {
['_olgxdruc3'] = 'bolo_description'
},
warrantRecordID = 2, -- Record ID for warrant records
warrantDescription = '_avb6wvgyi', -- Field ID for warrant description
warrantFlags = '_hlshajq0f' -- Field ID for warrant flags
}
}
if config.enabled then Config.RegisterPluginConfig(config.pluginName, config) end
function returnAgeFromDobString(dobString)
local day, month, year
if config.DOBFormat == "en" then -- dd/mm/yyyy
day = tonumber(dobString:sub(1,2))
month = tonumber(dobString:sub(4,5))
year = tonumber(dobString:sub(7,10))
elseif config.DOBFormat == "us" then -- mm/dd/yyyy
month = tonumber(dobString:sub(1,2))
day = tonumber(dobString:sub(4,5))
year = tonumber(dobString:sub(7,10))
elseif config.DOBFormat == "iso" then -- yyyy/mm/dd
year = tonumber(dobString:sub(1,4))
month = tonumber(dobString:sub(6,7))
day = tonumber(dobString:sub(9,10))
else
errorLog("Unsupported DOB format: " .. tostring(config.DOBFormat))
end
local today = os.date("*t")
local age = today.year - year
if today.month < month or (today.month == month and today.day < day) then
age = age - 1
end
return tostring(age)
end
